R2 Hydraulic Hose

Size – 1/4” , 5/16” , 3/8” , ½” , 5/8” , ¾” , ¾” , 1” , 1-½” ,

An R2 hydraulic hose (specifically SAE 100R2) is similar to an R1 hose but built for higher pressure applications. Here's how it stacks up:

🔧 SAE 100R2 Hydraulic Hose – Key Features:

Construction:

Tube: Oil-resistant synthetic rubber.

Reinforcement: Two layers of high-tensile steel wire braid (vs. one in R1).

Cover: Weather, abrasion, and oil-resistant synthetic rubber.

Applications:

Suitable for high-pressure hydraulic systems.

Used in industrial machinery, mining, and heavy equipment.

Pressure Ratings:

Higher than R1 – usually ranges from 2,000 to 6,000 psi (140 to 415 bar), depending on hose size.

Temperature Range:

Typically from -40°C to +100°C (-40°F to +212°F).

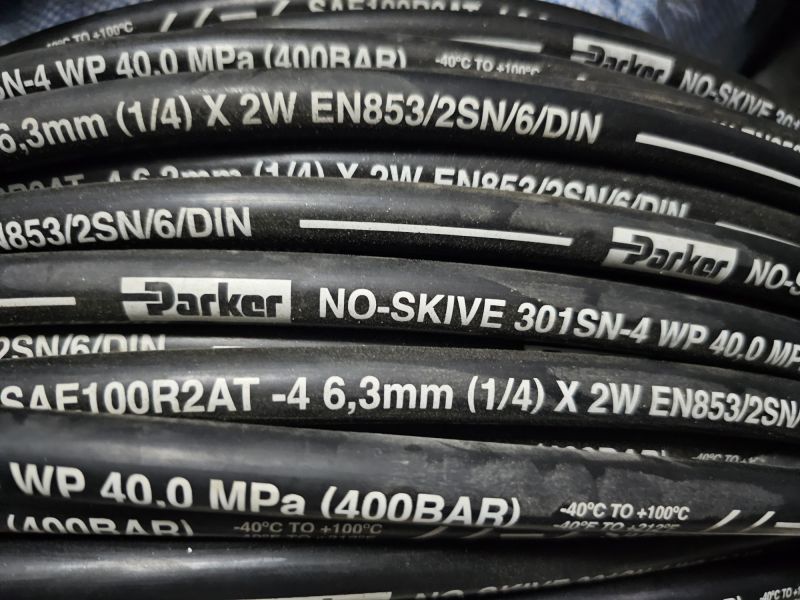

Hose Identification Example:

SAE 100R2AT 3/8' WP 4800 PSI (a 3/8 inch hose rated for 4800 psi).
